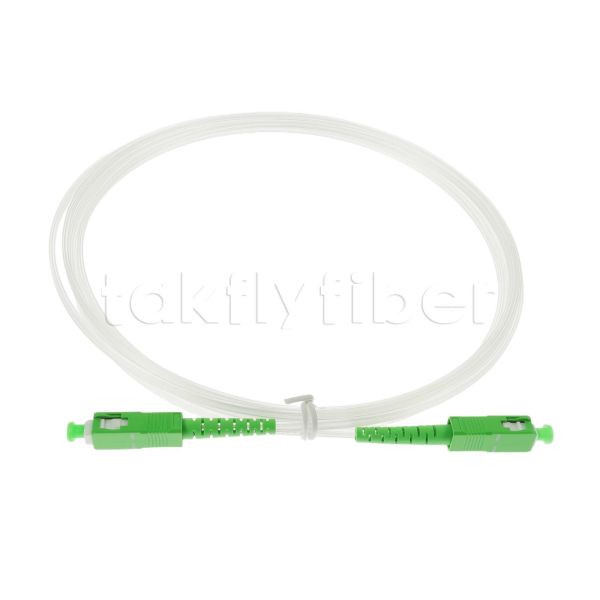

SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable

  • 1
  • 2
  • 3

Length : 3M or Customized

Grade : Telecom Grade

Certificate : CE/ROHS/REACH

Production Capcity : 10000PCS/Day

Connector Type : APC

Packaging Details : Export Standard Packing

Color : Transparent

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Brand Name : DF/OEM/Nuetral

MOQ : 100PCS

Delivery Time : 5-9 working days depends on QTY

Fiber Type : OS2, G652D , G657A1 , G657A2 , G657B3

Jacket Material : PVC

Wavelength : 1310nm,1550nm

Model Number : TK-TI-PC--SA-AS-2.0x3.0-PVC-XXX

Payment Terms : Western Union,T/T,/Paypal

Product Name : SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable

Intertion Loss : ≤0.3dB

Diameter : 2.0*3.0mm

Return Loss : APC SM ≥ 60dB

Price : US$0.01~4.69/PC

Fiber Diameter : 9/125

Supply Ability : 5000PCS/Day

Place of Origin : China

Operation Temperature : -20℃~70℃

Contact Now

SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable
Takfly SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable is designed for indoor optical networks, offering a discreet and high-performance solution for modern fiber installations. Its ultra-thin and transparent design allows seamless integration into any indoor environment, making it perfect for fiber-to-the-room (FTTR) deployments.
Equipped with SC/APC connectors, the patch cord delivers reliable low-loss connections, supporting high-speed data transmission for telecom systems, smart homes, and enterprise networks. Built for flexibility, the 2.0*3.0mm cable is easy to install around tight spaces and provides long-term durability.
SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable
Product Specifications
Fiber Optic Attributes
  • Mode field diameter: 8.6um±0.4um at 1310nm
  • Cladding diameter: 125.0um±0.7um
  • Coating diameter: 245um±10um
  • Coating-cladding concentricity error: ≤12.5um
  • Cut-off wavelength: ≤1260nm
  • Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
  • Number of fiber: 1 core
  • Fiber type: G657A1/SM G657A2/G657B3
  • Strength member material: FRP
  • Diameter: 0.5mm*2
Outer Sheath
  • Material: LSZH Black
  • Cable size: 2.0*3.0mm
Connector Test Specifications
Item Specifications
Type SC/APC(1310)
Insertion Loss ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm
≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm
Return Loss ≥60dB
Endface IEC 61300-3-35
Durability(1000 Mating) 0.2dB Max.increase
Installation Temperature -10℃～+60℃
Operating Temperature -25℃~70℃
Storage Temperature -40℃~75℃
Cable pull 70N
Optical Fiber Performance
Parameter Long Term Short Term
Tensile strength (N) 40 80
Crush load (N) 500 1000
Wavelength (nm) 1310/1550
Attenuation (dB) 0.4/0.3
Cladding diameter (um) 125±1
Cladding non-circularity ≤1.0%
Coating diameter (um) 242±7
Detailed Parameters
NO. Item Unit Specification SM G657A2
1 Mode Field Diameter 1310nm μm 8.2~9.0
Mode Field Diameter 1550nm μm 9.1~10.1
2 Cladding Diameter μm 125±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12
8 Cable Cutoff Wavelength nm λcc ≤1260
9 Attenuation(Max) 1310nm dB/KM ≤0.36
Attenuation(Max) 1550nm dB/KM ≤0.25
10 Macro-Bending Loss 1 Turn x 7.5mm radius@1550nm dB ≤0.08
Macro-Bending Loss 1 Turn x 7.5mm radius@1265nm dB ≤0.25
Applications
  • FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
  • Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
  • Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
  • Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
  • Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
  • Invisible Fiber Design: 2.0*3.0mm cable with a transparent finish blends into surroundings for discreet indoor use
  • High-Performance SC/APC Connectors: Ensures low insertion loss and high return loss for stable signal transmission
  • Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
  • Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.
