DF-PS-G 10/100/1000M PoE Splitter Cable (13W)

Brand Name : DF/OEM/Nuetral

Model Number : DF-PS-G 10/100/1000M PoE Splitter Cable (13W)

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : DF-PS-G 10/100/1000M PoE Splitter Cable (13W)

Network Medium : UTP Cat.5 or more(≤100 meter) Transmission Bandwidth: 10/100/1000M

Network Protocol : IEEE 802.3af DTE Power via MDI

Connector : 1* PoE RJ45 Input Port, 1* RJ45 Output Port, 1* DC Power Input Port (5.5x2.1mm)

Output Current : 1.1A

Output Power : 13W

Input Voltage : 37-57V/DC

Working Temperature : -20~+55°C;

Storage Temperature : -20~+75°C;

Storage Humidity : 10% ~ 95%, non-condensing;

Warranty : 1 years, lifetime maintenance

Fiber Brand : Corning, YOFC, OFS, Draka

Contact Now

DF-PS-G
10/100/1000M PoE Splitter Cable (13W)
Product Overview
10/100/1000M PoE Splitter Cable is a cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af, could split the power and data transmitted through cable. It could provide power and data to device without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could flexibly expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.
With transformer isolated design for circuit input stage and output stage of the DF-PS-G power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem.
Meeting the standard of IEEE802.3af. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.
Key Features
  • 1* 8-Pin RJ45 female input port + 1* RJ45 male output port + 1* DC(5.5*2.1mm) male output port
  • 1* 10/100/1000Mbps RJ45 port
  • Support IEEE802.3af
  • PoE Input Voltage: 44-57V
  • Output voltage: 12V(Default)
  • Output power: 13W
  • Circuit protection to protect the connected device
  • Top-quality design, stable and reliable
Technical Specifications
DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
Note: Product specifications are subject to change without prior notice. For optimal transmission distance, we recommend using standard Cat5e/6 cables.

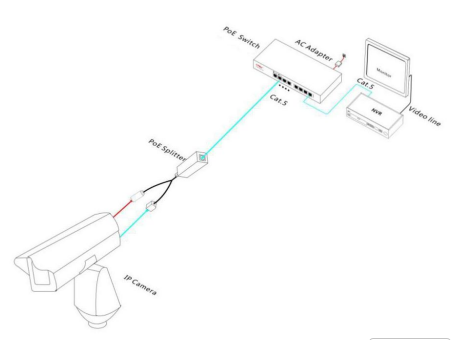

Product Images
DF-PS-G 10/100/1000M PoE Splitter Cable (13W) DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
Why Choose TAKFLY
  • 25+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
